ADP3419JRMZ-REEL,Gate Drivers,IC GATE DRVR HALF-BRIDGE 10MSOP
Reference Only

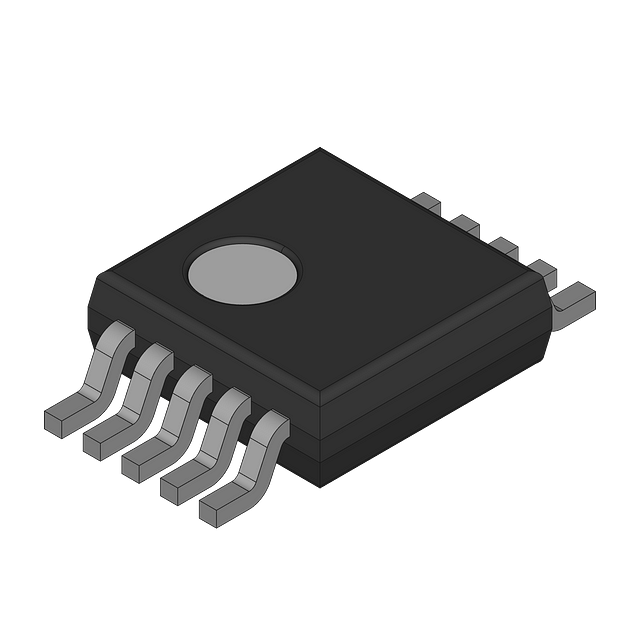

ADP3419JRMZ-REEL
IC GATE DRVR HALF-BRIDGE 10MSOP
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: ADP3419JRMZ-REEL
Model Part Number: ADP3419JRMZ-REEL
Product Category: Gate Drivers
ONSEMI
Standard
486727 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Manufactureronsemi
PackageMSOP
TypeHigh and Low Side
Product CategoryPMIC - Gate Drivers
Channel TypeSynchronous
Current - Peak Output (Source, Sink)-
Driven ConfigurationHalf-Bridge
Gate TypeN-Channel MOSFET
High Side Voltage - Max (Bootstrap)30 V
Input TypeNon-Inverting
Logic Voltage - VIL, VIH0.8V, 2V
Mounting TypeSurface Mount
Number of Drivers2
Operating Temperature0°C ~ 150°C (TJ)
Package / Case10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Product StatusObsolete
Rise / Fall Time (Typ)14ns, 11ns
Supplier Device Package10-MSOP
Voltage - Supply4.6V ~ 6V
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
Documents
Datasheet
