L6920D,DC/DC Switching Regulators,IC REG BST ADJ/FIX 800MA 8TSSOP
Reference Only

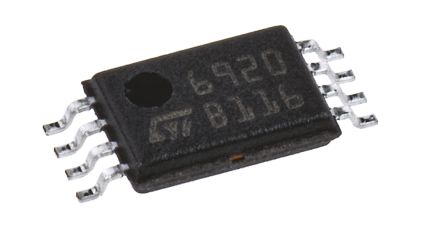

L6920D
IC REG BST ADJ/FIX 800MA 8TSSOP
Availability
Product Details
Manufacturer: STMicroelectronics
SN Part Number: C1S730200419385
Model Part Number: L6920D
Product Category: DC/DC Switching Regulators
STMicroelectronics
Datasheet
Available Packaging
Standard
6 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
TypePositive
ManufacturerSTMicroelectronics
Product CategoryPMIC - Voltage Regulators - DC DC Switching Regulators
Fan-out1
Current - Output800mA (Switch)
Maximum input voltage5.5V
Frequency - Switching-
Output voltage1.8V (3.3V/5V)
Operating temperature range-40 to 85C
Power-supply voltage range0.6V
Number of Outputs1
Package8-TSSOP 4.40mm Width
RectifierYes
Operating Temperature-40°C ~ 85°C (TA)
Output ConfigurationPositive
Package (Supplier)8-TSSOP
Maximum output voltage5.5V
Output current0.8A(Switch)
Package / Case8-TSSOP (0.173", 4.40mm Width)
Product StatusActive
FunctionStep-Up
Output typeAdjustable (Fixed)
Supplier Device Package8-TSSOP
Synchronous RectifierYes
TopologyBoost
Mounting TypeSurface Mount
Manufacturer packaging quantity100
Voltage - Input (Max)5.5V
Voltage - Input (Min)0.6V
Voltage - Output (Max)5.5V
Voltage - Output (Min/Fixed)1.8V (3.3V, 5V)
Other Information
Packing
Tube
Minimum packaging
2
Minimum order quantity
2
Documents
Datasheet
Datasheet
