LD1117DT33TR,Linear Regulator,IC REG LINEAR 3.3V 800MA DPAK

Reference Only

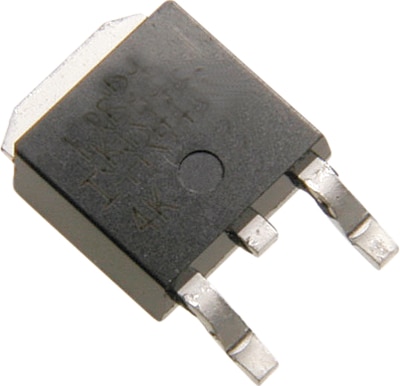

LD1117DT33TR

IC REG LINEAR 3.3V 800MA DPAK

Availability

Standard: 5000 In Stock

Product Details

Manufacturer: STMicroelectronics

SN Part Number: LD1117DT33TR

Model Part Number: LD1117DT33TR

Product Category: Linear Regulator

STMicroelectronics

5000 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Type	Positive
Manufacturer	STMicroelectronics
Output type	Fixed
Product Category	PMIC - Voltage Regulators - Linear
Control Features	-
Number of Regulators	1
Input voltage	15V
Current - Output	800mA
Output voltage	3.3V
Current - Quiescent (Iq)	10 mA
Dropout voltage	1.2V@800mA
Current - Supply (Max)	-
Output current	0.8A
Quiescent Current	10mA
PSRR	75dB (120Hz)
Operating Temperature	0°C ~ 125°C
Protection Features	Over Current, Over Temperature
Output Configuration	Positive
Operating temperature range	0 to 125C
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Package	TO-252-3/DPak(2-Lead+Tab)/SC-63
Product Status	Active
Fan-out	1
Maximum input voltage	15V
Function	LDO
Supplier Device Package	DPAK
Manufacturer Packaging	Tape & Reel
Voltage - Input (Max)	15V
Manufacturer packaging quantity	2500
Voltage - Output (Max)	-
Voltage - Output (Min/Fixed)	3.3V
Voltage Dropout (Max)	1.2V @ 800mA

Other Information

Packing

Minimum packaging

0

Minimum order quantity

0

Documents

Datasheet
