2DU180506MR02,Gate Drivers,(ROHM: BSM300D12P2E001/BSM400D12
Reference Only

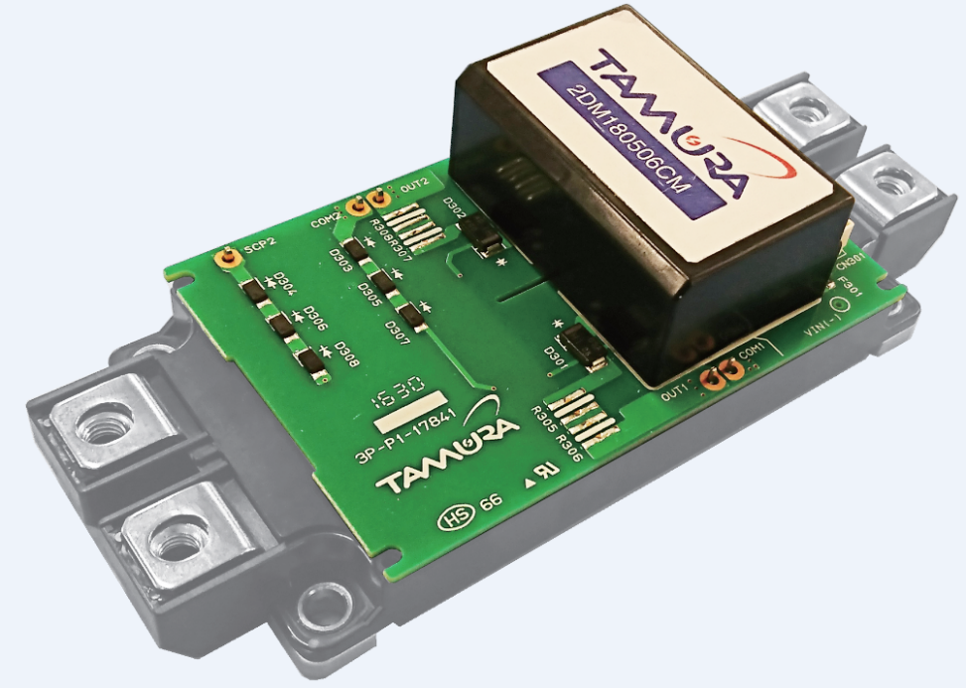

2DU180506MR02
(ROHM: BSM300D12P2E001/BSM400D12
Availability
Product Details
Manufacturer: Tamura
SN Part Number: C1S739600028748
Model Part Number: 2DU180506MR02
Product Category: Gate Drivers
Tamura
Datasheet
Available Packaging
Standard
3041 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Drive2
ManufacturerTamura
Product CategoryPMIC - Gate Drivers
Protection FeaturesMirror Clamp
TypeGate Driver Unit
Channel TypeIndependent
Current - Peak Output (Source, Sink)20mA, -
Input signal5V
Driven ConfigurationHalf-Bridge
Gate voltage+18(H)/-5(L)V
Operating temperature range-40 to 85C
High Side Voltage - Max (Bootstrap)-
Safety standardUL508準拠
Input Type-
Gate typeSiC MOSFET
Logic Voltage - VIL, VIH0.8V, 2V
Compatible Power ModuleBSM300D12P2E001
Input voltage(DC)13 to 28/24C
Mounting TypeChassis Mount
Manufacturer PackagingTray
Number of Drivers2
Operating Temperature-40°C ~ 85°C
Manufacturer packaging quantity100
Package / CaseModule
Product StatusActive
Rise / Fall Time (Typ)500ns, 500ns
Supplier Device PackageModule
Voltage - Supply5V
